Manifolds- let's see them!

[Doberman13]

I am currently plumbing my 72 gallon bowfront and want to utilize a manifold. I know a few of our members have awesome, clean looking setups. I would love to see y'alls!

This is what I have so far. I need to figure out how to support the weight.



[Trizzino]

Here is a manifold from my old tank. Weight was supported by the pump and a couple pipe brackets.



[civics14]

I am currently plumbing my 72 gallon bowfront and want to utilize a manifold. I know a few of our members have awesome, clean looking setups. I would love to see y'alls!

This is what I have so far. I need to figure out how to support the weight.
View attachment 35416

I highly suggest you use gate valves if you're doing a manifold. It's pricier, but much easier to tune and I feel like less pressure on the manifold because those ball valves are a PITA to turn! I feel like I'm going to break the dang pipe sometimes just turning it on my mixing station setup.



[Doberman13]

Thats a good point, I'd rather do it now rather than being stuck later. I have already spent almost as much as the wall materials just on pvc parts so might as well. I'll go back to home depot today.



[Adam]

Thats a good point, I'd rather do it now rather than being stuck later. I have already spent almost as much as the wall materials just on pvc parts so might as well. I'll go back to home depot today.

Home Depot doesn't have PVC gate valves. You can get them on Amazon though.

For pipe support, you can use the clamp style with threaded rod for the piping coming off the back of the tank. There's pics of that and the manifold in my old build thread. The posts are all out of order but there are plenty of pics. You can get the clamps at Lowes, not HD. They're galvanized but after a year or so I had to replace them because the zinc was flaking off. I pained the replacements.

New reefer 220 build.

I've always wanted to have a salt water tank since I was a little kid. When I bought my house in 99' I finished the basement a couple years later and had a spot planned out to put a large tank but life & fiances got in the way. Watching a few TV shows last year rekindled in the interest. So I...

atlantareefclub.org

https://www.lowes.com/pd/AMERICAN-VALVE-1-2-in-to-1-2-in-dia-Galvanized-Split-Ring-Hanger/3223519

Under the tank support I recommend J-Hooks.

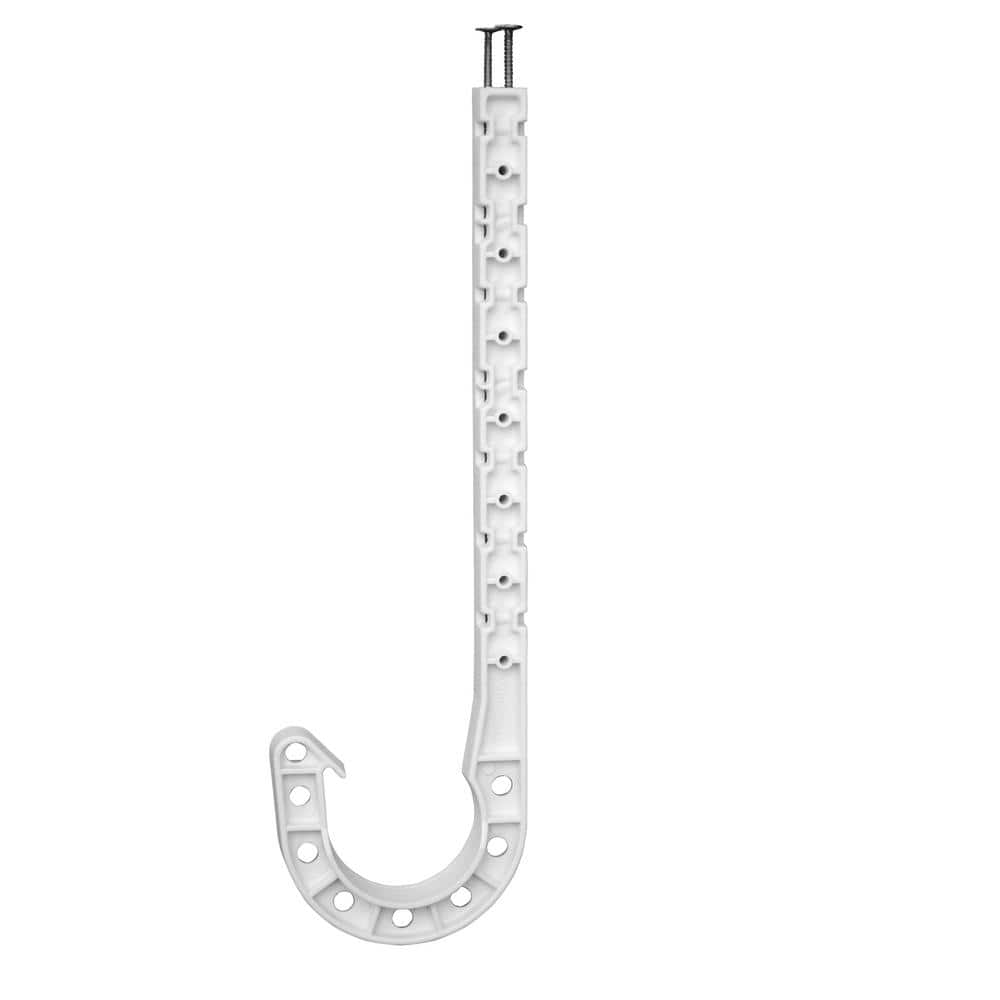

Oatey 1-1/2 in. DWV J-Hook Pipe Hanger 33508 - The Home Depot

Oatey DWV J-Hooks are available in a variety of sizes and provide a fast, economical way to support Schedule 30 and Schedule 40 PVC piping. Made of durable ABS plastic, J-hooks include pre-loaded nails

www.homedepot.com



[Eric_n_Ga]

Don't really use it ....but I have one I built... overbuilt actually



[civics14]

I used these as my pipe support in this build. They work great. I used stainless steel screws tho instead of nails. So I didn't have to worry about rusting.

https://www.lowes.com/pd/HoldRite-4-in-to-4-in-dia-Plastic-J-hook/1001097480



[Doberman13]

Oh great... now I'm second guessing my use of the white PVC and want to make it out of the gray pvc



[myvwrock]

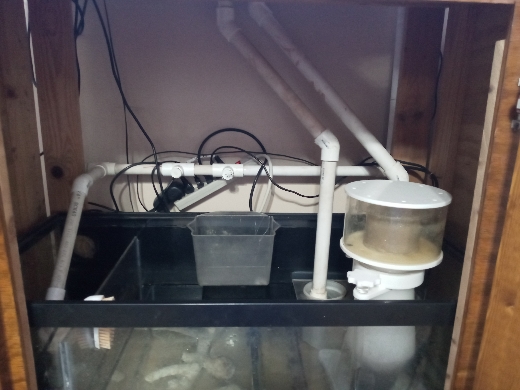

Please excuse the cords. I have not built a side compartment to hide them and i plan on putting a switchable power rack in it.

But you can see the two "t's" that are capped off for future use. I plan on hooking my UV sterilizer up and probably a frag tank. Its simple and works.

Sent from my LM-K500 using Tapatalk



[ichthyoid]

I bought NVENT clips for mounting PVC pipe with, available from several sources online-

SupplyHouse.com - Plumbing, Heating & HVAC Supplies - SupplyHouse.com

SupplyHouse.com offers HVAC, PEX, radiant heat, hydronic heating and plumbing supplies. Shop now for great prices on PEX Tubing, thermostats, fittings & more.

www.supplyhouse.com

Google- clip pvc pipe



[Doberman13]

This is what I have so far. Still waiting on the gate valves from Amazon.


I didn't want to drill the hole through the stand but it makes everything look much cleaner. If I ever need to pull the manifold down I'll have to cut the pipe and put a coupler on.
I found some plastic conduit retainers that work pretty well to hold the manifold up.
