Neptune ATK Task programming error.

[Dave.patel]

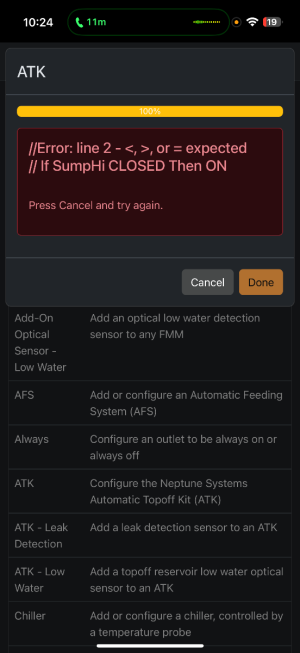

I am trying to set up a ATK with an Apex. While running the task I keep getting the picture as an error. I have no idea where to go from here.



[project1004]

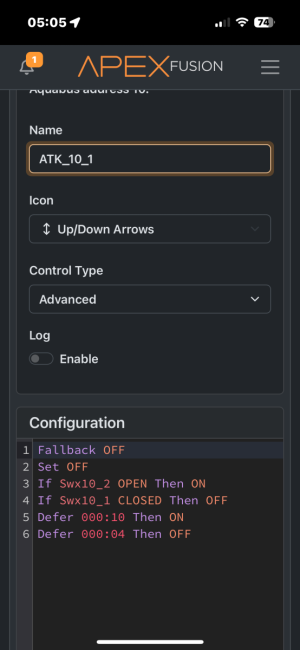

My ATK programs by was messed up few days ago so I had to fix my programming and currently this is how my atk program is set up.
(SWITCH1 use to be the lower sensor and switch 2 was higher sensor before. Now, it’s flipped. BUT IT WORKS. lol.



[hzheng33]

this is my program

Fallback OFF
Set OFF
If Output 8_ReturnPump = OFF Then OFF
If LVL_L OPEN Then ON
If LVL_HI CLOSED Then OFF
When On > 005:00 Then OFF
Defer 000:06 Then ON
Defer 000:05 Then OFF
Min Time 010:00 Then OFF



[Dave.patel]

Did you have rename of the FM Sensor?



[hzheng33]

Did you have rename of the FM Sensor?

i have it, but i don't use it for ATO purpose.

i rely on two optical sensors: LVL_Hi and LVL_L
