Show me your Water Change Setup

T

Todd13189

Member
Market
Messages
65
Reaction score
24
Location
Conyers, GA
Im needing to upgrade my 5 gallon bucket, dinky siphon water change method so it takes less time when I do change the water.
Does anyone have an example(photo) of there water change setup/system??

Thanks in advanced!



I drilled a hole at the point that I wanted to drain my tank for water changes, put in a a bulkhead and ball valve. Attached a hose to the other end. Now I just open the valve, drain off what I need to change and then refill out of my 40 gal barrel via a mag pump and another hose to my sump. Takes about 10 minutes total.


Sent from my iPhone using Tapatalk

charlieborg said:


I drilled a hole at the point that I wanted to drain my tank for water changes, put in a a bulkhead and ball valve. Attached a hose to the other end. Now I just open the valve, drain off what I need to change and then refill out of my 40 gal barrel via a mag pump and another hose to my sump. Takes about 10 minutes total.


Sent from my iPhone using Tapatalk
Click to expand...
Thats imppressive!!!

I'm in the process of building out my mixing station that will make my wage changes easy, I'm also relocating my sump to a different side of the house so that I have more room. I'll be using a ball valve off of my return pump to pump old water out and a large mixing pump to fill back up. I was hoping that mine will take about 10 minutes, we'll see.

Sent from my SM-G975U using Tapatalk

Wish I could help. The only thing that's change for me in the past 20 years is that I added a powerhead and hose to pump the new saltwater in to my sump. Other than that, it's 5g buckets all the way. I only do 10g water changes so it's not that big of a deal and I consider it exercise. I'm bumping this in case anyone else has additional info.

My favorite water change system is owned by @jessezm Basically, he has a large aquarium plumbed into his whole system that is noting but water. When he does a water change, he closes the line to the aquarium (50g?), drains it, adds fresh saltwater and opens the line back up. It's a whole big aquarium just for water changes, it's pretty cool and takes him around 10 minutes to complete.

Yep, actually only takes five minutes for a complete 60g change! The beauty of it is also that the tank collects detritus that settles out over the two weeks between changes, and I can just swirl the water and evacuate everything in one go. Because the tank is tee'd off in line with the drain on the way to the sump, I can isolate it, and water just redirects to the sump directly while I'm draining the 60g cube. This way, I never even have to turn off the main return pump, and when I open the valve again, the new water mixes slowly with the rest of the system so it's not a shock.

I don't know if you have the space to do all this, but if so and you're interested, I can take some pics. But all of this is in the basement fish room, and the display is directly on the floor above.

jcook54 said:
Wish I could help. The only thing that's change for me in the past 20 years is that I added a powerhead and hose to pump the new saltwater in to my sump. Other than that, it's 5g buckets all the way. I only do 10g water changes so it's not that big of a deal and I consider it exercise. I'm bumping this in case anyone else has additional info.

My favorite water change system is owned by @jessezm Basically, he has a large aquarium plumbed into his whole system that is noting but water. When he does a water change, he closes the line to the aquarium (50g?), drains it, adds fresh saltwater and opens the line back up. It's a whole big aquarium just for water changes, it's pretty cool and takes him around 10 minutes to complete.
Click to expand...

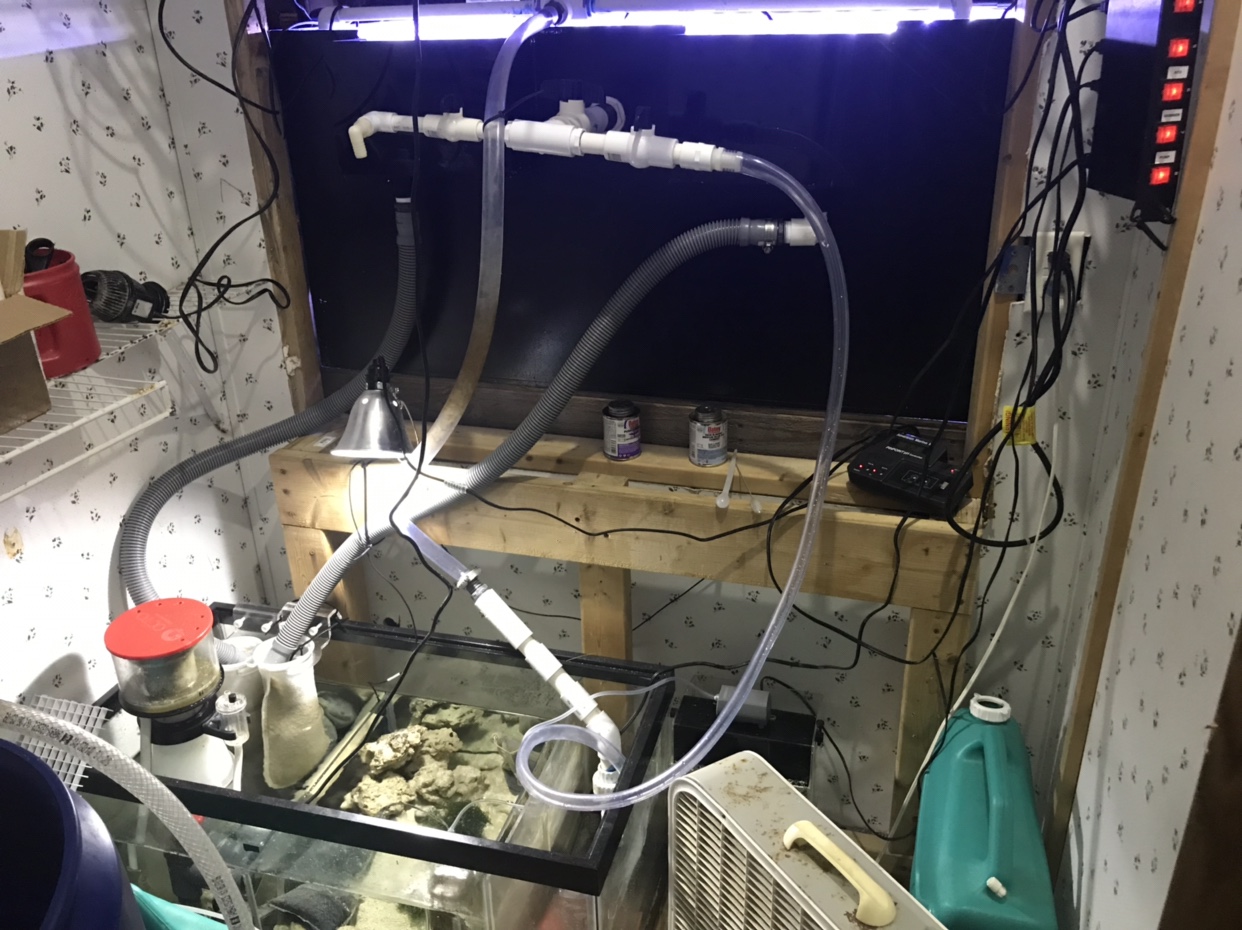

Python to drain with quick disconnect.20190516_200324.jpg20190516_195958.jpg20190516_195940.jpg
Left barrel is RODI, right is salt mix, both with pumps and quick disconnects for the Python to refill. RODI barrel has a powerhead on a switch to transfer to mixing barrel. Mixing barrel pump is plumbed for recirculation (when plugged into a timer), or re-filling tanks with Python (when plugged into remote control 110VAC receptacle).

Anyone have a smaller Water Change setup they can show? These are all impressively to much for my current needs or also $$ I would like to spend!

bhodges82 said:

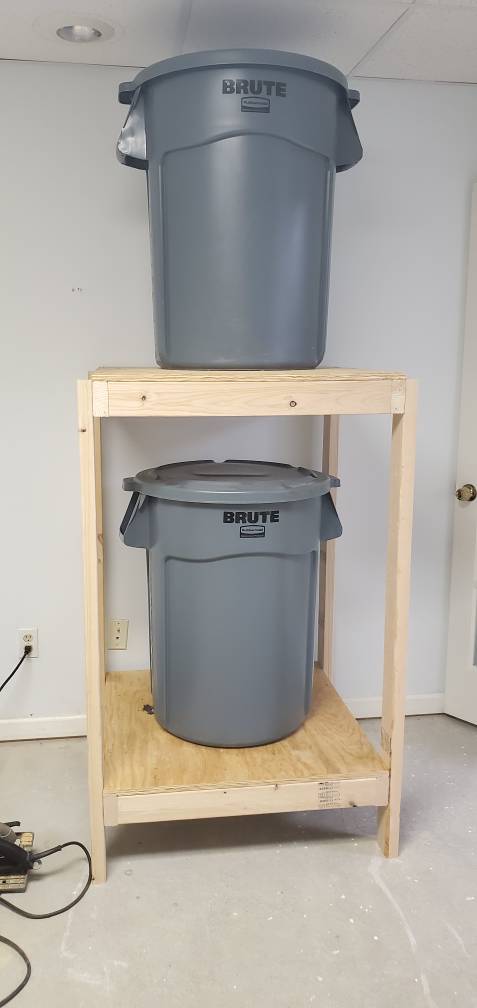

I will hopefully be plumbing this up Sunday.. Fresh on top, mix in the bottom, ro unit on the side.


Sent from my SM-G975U using Tapatalk
Click to expand...
Nice!!! That looks pretty realistic for myself to setup!! Let me know when you have all the plumbing installed; Id love to see a finished pic?

What size buckets did you use before these?

Todd13189 said:
Nice!!! That looks pretty realistic for myself to setup!! Let me know when you have all the plumbing installed; Id love to see a finished pic?

What size buckets did you use before these?
Click to expand...
Before this i had a 27 gallon Rubbermaid tote that i would use for ro and 50 gallon tire for mixing, i would mix 40 gallons so I had to fill the ro container twice.

Sent from my SM-G975U using Tapatalk

bhodges82 said:
Before this i had a 27 gallon Rubbermaid tote that i would use for ro and 50 gallon tire for mixing, i would mix 40 gallons so I had to fill the ro container twice.

Sent from my SM-G975U using Tapatalk
Click to expand...
Gotcha!! You till using that 27 gallon container?

I have a Grease pencil mark on my tank , I set my drain tube to that mark with my fancy clothes pin and let it rip in to a 5 gallon bucket . Then pour 5 gallons in by hand. But I have a little tank .
