Most often than not... many have a chinese led quit working on either the blue channel or white channel. And more often than not... its assumed its a driver. A led tester is pretty simple to make with 2 double A batteries... especially if youve got an old kids toy laying around. Ive repaired tons of led units as well as converted them to full spectrum. I thought I'd share that process.

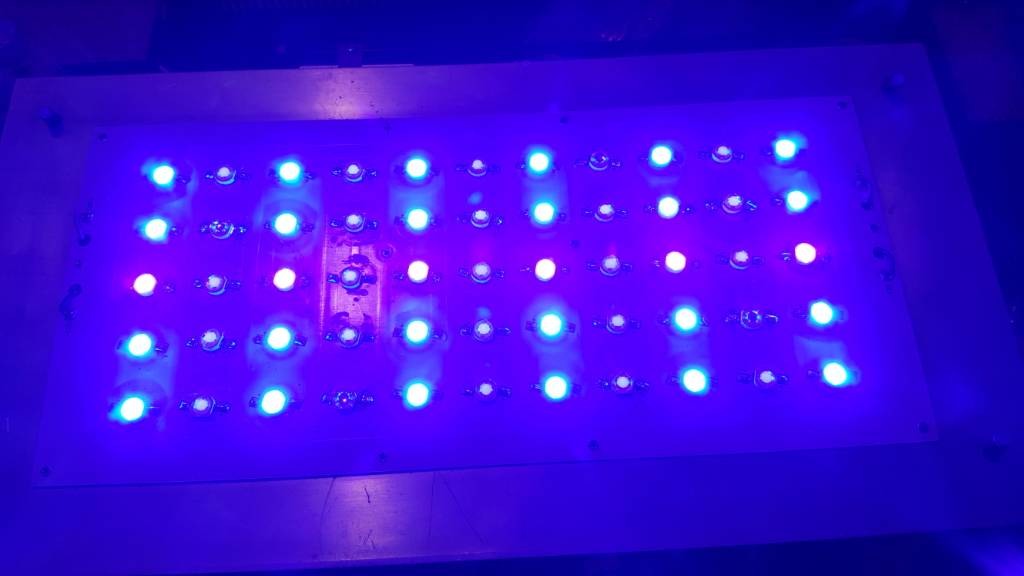

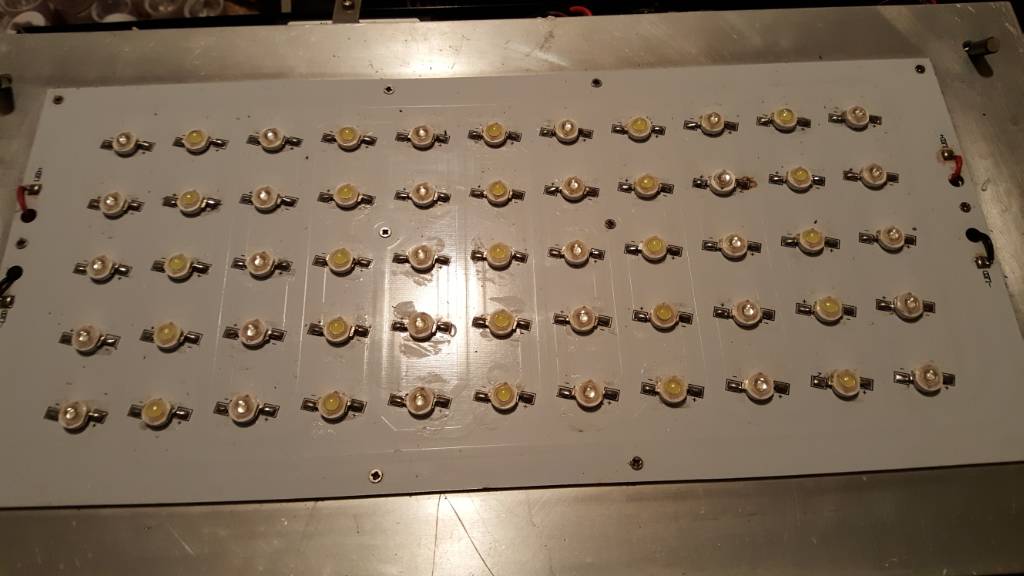

Here I took the housing apart to expose the solder joints of the unit. This particular unit had all working leds but consisted of only blues and whites

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

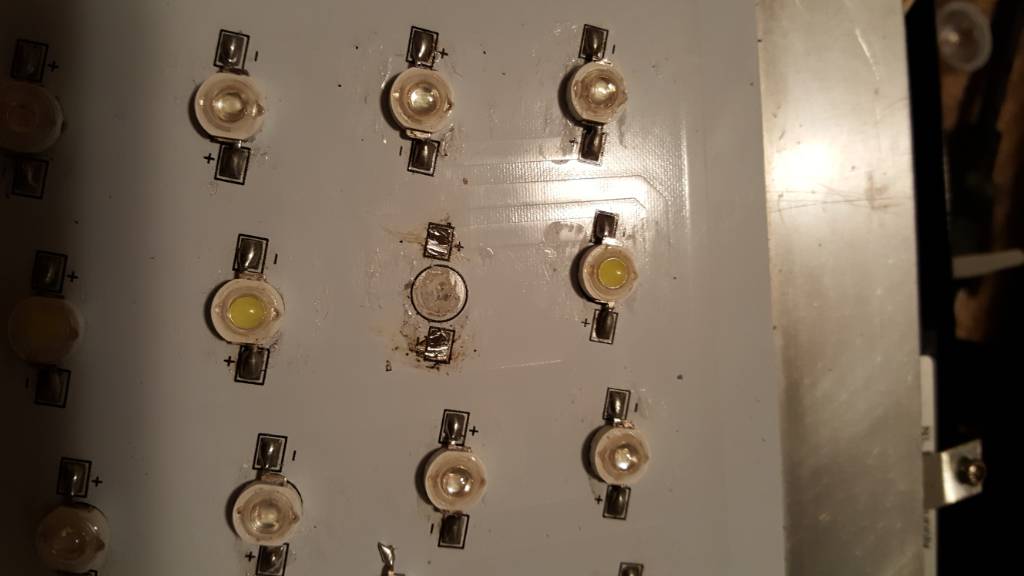

Using a solder iron to heat the old joint as to remove 1 of the white leds

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

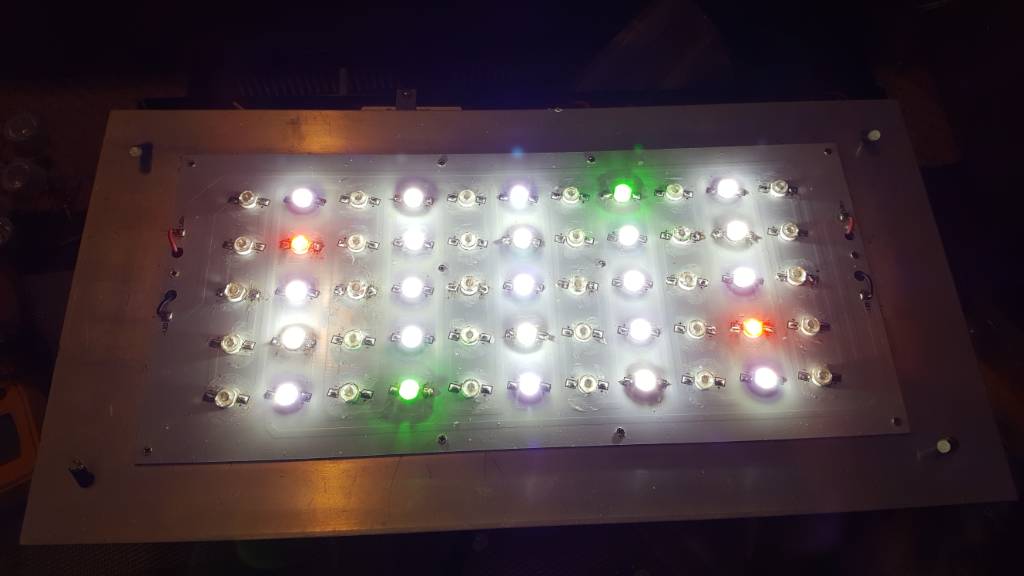

I removed 4 white leds to put in the greens and reds along with 6 additional leds that i put a slightly different white.

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

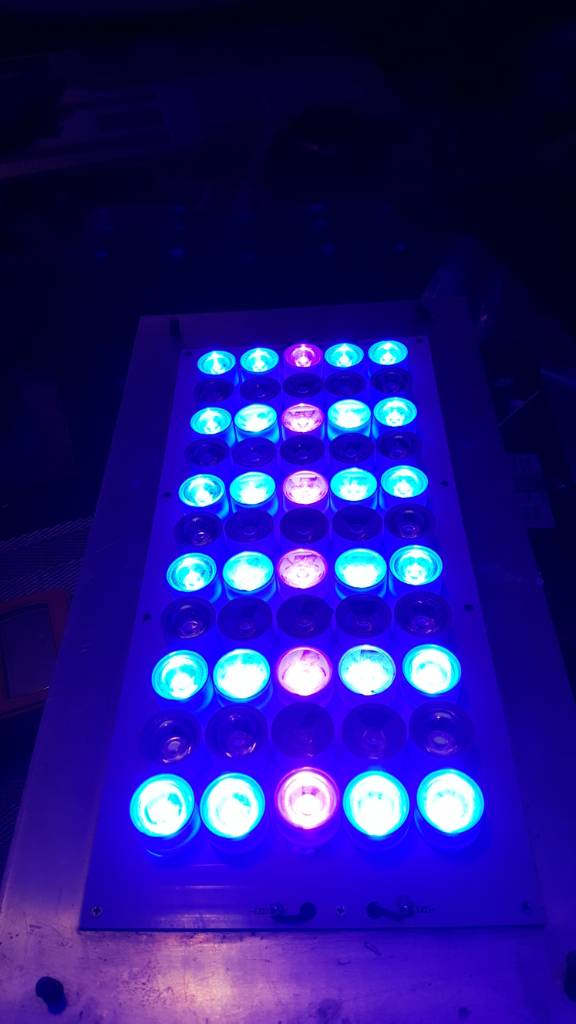

I thrn did the same on the blue channel to add a few uv and violets

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

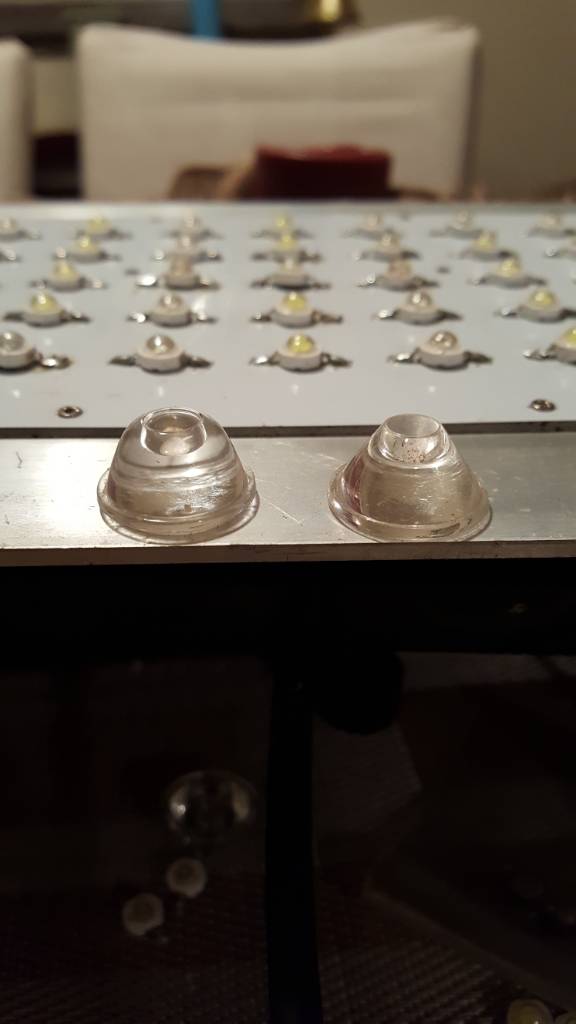

I thrn pulled out 2 different optics to use. Using the 90s on the perimeter of the unit and 60s on the interior

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

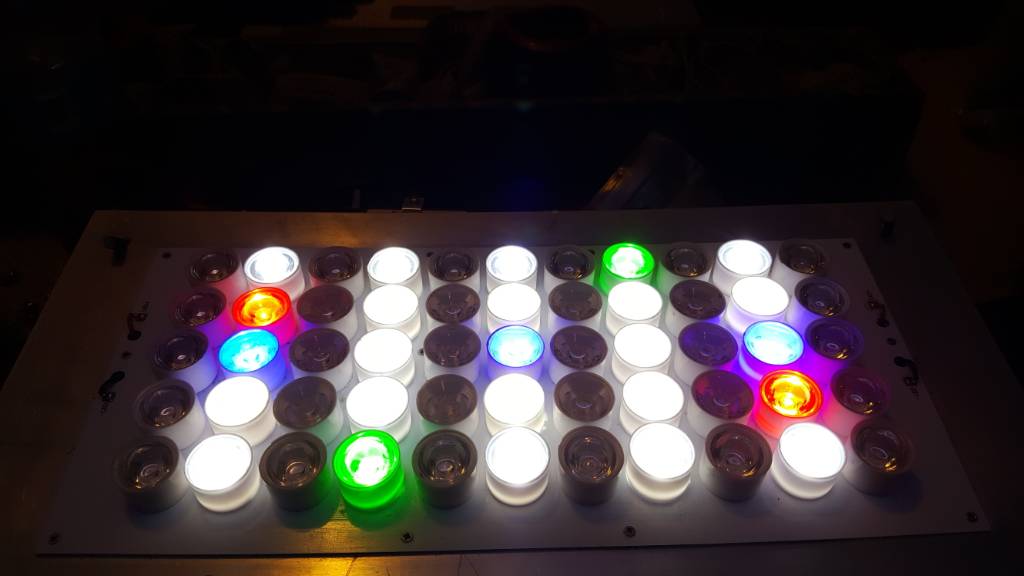

Optics in place and one final test before assembling the unit back together

alt="" />

alt="" />

Sent from my SM-N920T using Tapatalk



[brandonmason]

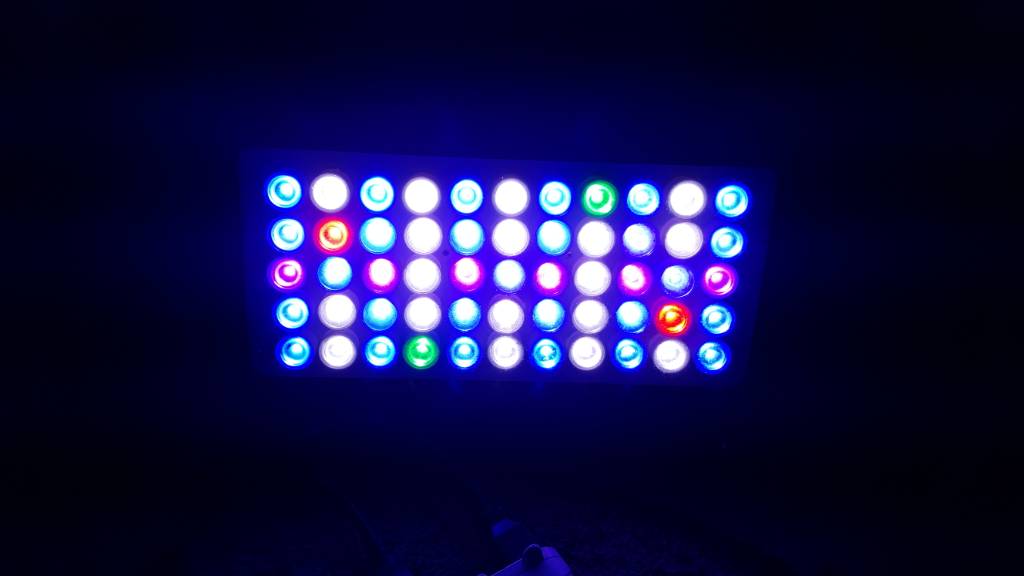

And now running together to have full spectrum

alt="" />

Sent from my SM-N920T using Tapatalk
